Description
Find original manufacturer's service parts for your Heiniger Handy clipper using the service diagram to ensure compatibility.
Available Spare Parts:
- Head Housing for Heiniger Handy - Product Code: SRV-HG-706-501
- Yoke Guide for Heiniger Handy - Product Code: SRV-HG-706-503
- Crank Sleeve for Heiniger Handy - Product Code: SRV-HG-706-505
- Crankshaft for Heiniger Handy - Product Code: SRV-HG-706-506
- Yoke Cube for Heiniger Handy - Product Code: HG-706-507
- Gear for Heiniger Handy - Product Code: HG-701-830
- Blade Pressure Sleeve for Heiniger Handy - Product Code: SRV-HG-706-509
- Spacer Screw for Heiniger Handy - Product Code: SRV-HG-706-510
- Pressure arm for Heiniger Handy clippers - Product Code: SRV-HG-706-511
- Yoke sleeve for Heiniger Handy clippers - Product Code: SRV-HG-706-514
- Compression spring for Heiniger Handy clippers - Product Code: SRV-HG-706-517
- Yoke arm for Heiniger Handy clippers - Product Code: HG-706-518
- Screw for Heiniger Handy clippers (M5 x 14) - Product Code: SRV-HG-706-520
- Screw for attaching the blade to Heiniger Handy clippers - Product Code: SRV-HG-706-521
- Screw for Heiniger clippers (M4 X 10) - Product Code: SRV-HG-706-523
- Circlip size 6 for Heiniger clippers - Product Code: SRV-HG-706-524
- Guide screw (M3 x 6) for Heiniger clippers - Product Code: SRV-HG-706-525
- Complete head for Heiniger Handy clippers - Product Code: SRV-HG-701-815
- Motor housing screw for Heiniger Handy (M3.5 x 6) - Product Code: SRV-HG-701-824
- Front motor handle for Heiniger Handy clippers - Product Code: SRV-HG-701-803
- Motor flange gasket for Heiniger Handy - Product Code: SRV-HG-701-612
- Motor centering flange for Heiniger Handy - Product Code: SRV-HG-701-610
- Pressure ring for Heiniger Handy 608 clippers - Product Code: SRV-HG-701-638
- Rotor bearing for Heiniger Handy clippers - Product Code: SRV-HG-701-636
- Retaining ring for Heiniger Handy clippers - Product Code: SRV-HG-701-639
- Ventilation wheel for Heiniger Handy motor - Product Code: SRV-HG-701-808
- Motor rotor for Heiniger Handy clippers - Product Code: SRV-HG-701-809
- Pressure ring for Heiniger 626 clippers - Product Code: SRV-HG-701-637
- Rotor bearing for Heiniger Handy clippers - Product Code: SRV-HG-701-635
- Mounting screw M3x45 for Heiniger Handy clippers - Product Code: SRV-HG-701-820
- Retaining washer M3 for Heiniger Handy - Product Code: SRV-HG-701-616
- Spacer sleeve for Heiniger Handy - Product Code: SRV-HG-701-818
- Rotor housing for Heiniger Handy - Product Code: SRV-HG-701-817
- Motor stator for Heiniger Handy - Product Code: SRV-HG-701-822
- Motor housing for Heiniger Handy - Product Code: SRV-HG-701-800-21A
- Carbon brushes for Heiniger with cover (2x) - Product Code: SRV-HG-701-633
- Carbon brush cap for Heiniger - Product Code: SRV-HG-701-634
- Mounting screws for Heiniger Handy M3.5 x 8 - Product Code: SRV-HG-701-640

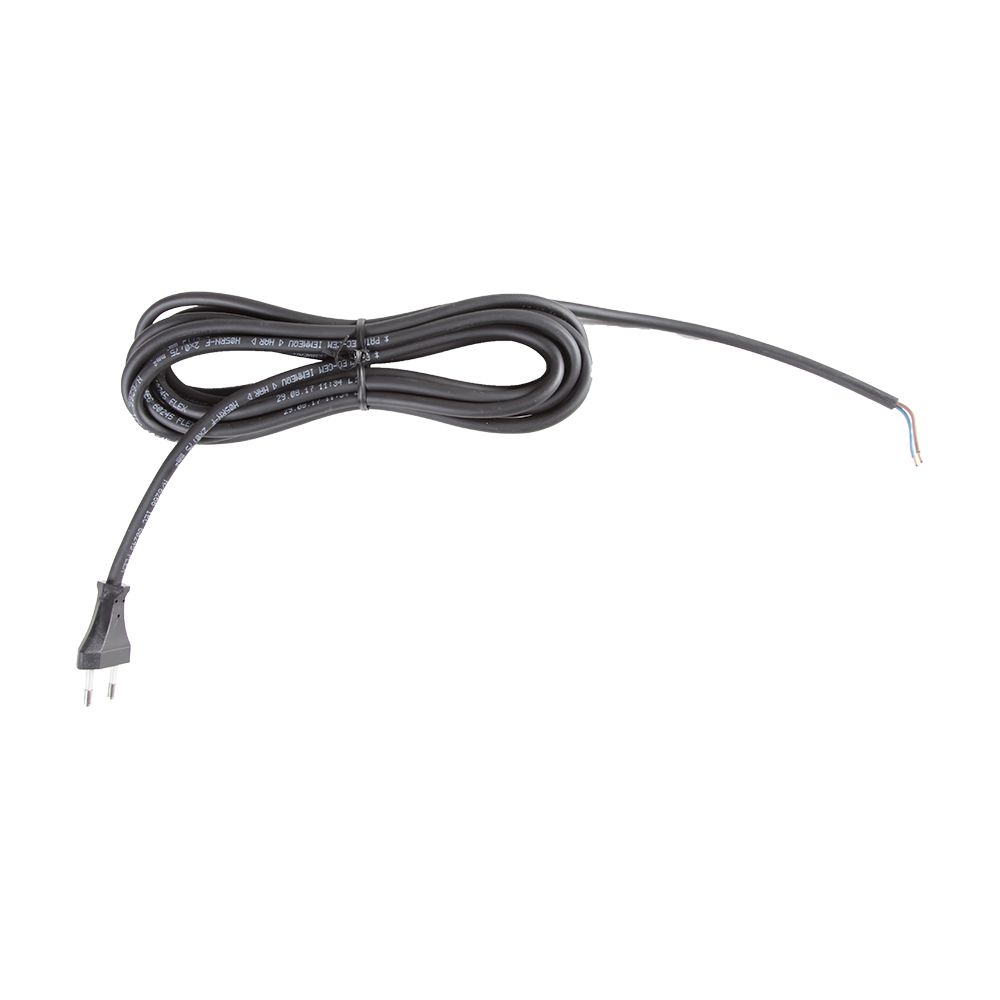

- Power cord for Heiniger Handy - Product Code: SRV-HG-701-645
- Cable strain relief for Heiniger Handy clipper - Product Code: SRV-HG-701-623
- Hanger for Heiniger Handy clipper - Product Code: SRV-HG-701-800-23
- Switch housing for Heiniger Handy clipper - Product Code: SRV-HG-701-867
- Motor screw for Heiniger Handy clipper M3.5 - Product Code: SRV-HG-701-621
- Switch for Heiniger Handy clipper - Product Code: SRV-HG-701-631
- Capacitor 0.15uF for Heiniger Handy clipper - Product Code: SRV-HG-701-669
- Cable mount for Heiniger Handy clipper - Product Code: SRV-HG-701-671
- Motor clamp for Heiniger Handy clipper - Product Code: SRV-HG-701-619
- Mounting screw M3 x 25 for Heiniger Handy - Product Code: SRV-HG-701-642
- Motor cover for Heiniger Handy - Product Code: SRV-HG-701-627
- Lower switch housing for Heiniger Handy - Product Code: SRV-HG-701-605
- Housing screw M3X6 for Heiniger Handy - Product Code: SRV-HG-701-641
- Air filter for Heiniger Handy - Product Code: SRV-HG-701-600-30A
Tip: If you need a part that isn't shown in the diagram, please contact us to verify the possibility of ordering it.
