Description
Find original manufacturer's service parts for your Heiniger Handy clipper, ensuring compatibility and quality.
Looking for spare/service parts for your Heiniger Handy clipper? Make your selection based on the clipper's service diagram. All parts offered are original manufacturer's service parts. If you need a part that can't be selected and/or isn't shown in the diagram, please contact us and we'll verify the possibility of ordering it.
Product Parts List:
- 1 SRV-HG-706-501 Head Housing for Heiniger Handy
- 2 SRV-HG-706-503 Yoke Guide for Heiniger Handy
- 3 SRV-HG-706-505 Crank Sleeve for Heiniger Handy
- 4 SRV-HG-706-506 Crankshaft for Heiniger Handy
- 5 HG-706-507 Yoke Cube for Heiniger Handy
- 6 HG-701-830 Gear for Heiniger Handy
- 7 SRV-HG-706-509 Blade Pressure Sleeve for Heiniger Handy
- 8 SRV-HG-706-510 Spacer Screw for Heiniger Handy
- 9 SRV-HG-706-511 Pressure arm for Heiniger Handy clippers
- 10 SRV-HG-706-514 Yoke sleeve for Heiniger Handy clippers
- 11 SRV-HG-706-517 Compression spring for Heiniger Handy clippers
- 12 HG-706-518 Yoke arm for Heiniger Handy clippers
- 13 SRV-HG-706-520 Screw for Heiniger Handy clippers (M5 x 14)
- 14 SRV-HG-706-521 Screw for attaching the blade to Heiniger Handy clippers
- 15 SRV-HG-706-523 Screw for Heiniger clippers (M4 X 10)
- 16 SRV-HG-706-524 Circlip size 6 for Heiniger clippers
- 17 SRV-HG-706-525 Guide screw (M3 x 6) for Heiniger clippers
- 18 SRV-HG-701-815 Complete head for Heiniger Handy clippers
- 19 SRV-HG-701-824 Motor housing screw for Heiniger Handy (M3.5 x 6)
- 20 SRV-HG-701-803 Front motor handle for Heiniger Handy clippers
- 21 SRV-HG-701-612 Motor flange gasket for Heiniger Handy
- 22 SRV-HG-701-610 Motor centering flange for Heiniger Handy
- 23 SRV-HG-701-638 Pressure ring for Heiniger Handy 608 clippers
- 24 SRV-HG-701-636 Rotor bearing for Heiniger Handy clippers
- 25 SRV-HG-701-639 Retaining ring for Heiniger Handy clippers
- 26 SRV-HG-701-808 Ventilation wheel for Heiniger Handy motor
- 27 SRV-HG-701-809 Motor rotor for Heiniger Handy clippers
- 28 SRV-HG-701-637 Pressure ring for Heiniger 626 clippers
- 29 SRV-HG-701-635 Rotor bearing for Heiniger Handy clippers
- 30 SRV-HG-701-820 Mounting screw M3x45 for Heiniger Handy clippers
- 31 SRV-HG-701-616 Retaining washer M3 for Heiniger Handy
- 32 SRV-HG-701-818 Spacer sleeve for Heiniger Handy
- 33 SRV-HG-701-817 Rotor housing for Heiniger Handy
- 34 SRV-HG-701-822 Motor stator for Heiniger Handy
- 35 SRV-HG-701-800-21A Motor housing for Heiniger Handy
- 36 SRV-HG-701-633 Carbon brushes for Heiniger with cover (2x)
- 37 SRV-HG-701-634 Carbon brush cap for Heiniger
- 38 SRV-HG-701-640 Mounting screws for Heiniger Handy M3.5 x 8
- 39 SRV-HG-701-645 Power cord for Heiniger Handy
- 40 SRV-HG-701-623 Cable strain relief for Heiniger Handy clipper
- 41 SRV-HG-701-800-23 Hanger for Heiniger Handy clipper
- 42 SRV-HG-701-867 Switch housing for Heiniger Handy clipper
- 43 SRV-HG-701-621 Motor screw for Heiniger Handy clipper M3.5
- 44 SRV-HG-701-631 Switch for Heiniger Handy clipper
- 45 SRV-HG-701-669 Capacitor 0.15uF for Heiniger Handy clipper
- 46 SRV-HG-701-671 Cable mount for Heiniger Handy clipper
- 47 SRV-HG-701-619 Motor clamp for Heiniger Handy clipper
- 48 SRV-HG-701-642 Mounting screw M3 x 25 for Heiniger Handy
- 49 SRV-HG-701-627 Motor cover for Heiniger Handy
- 50 SRV-HG-701-605 Lower switch housing for Heiniger Handy

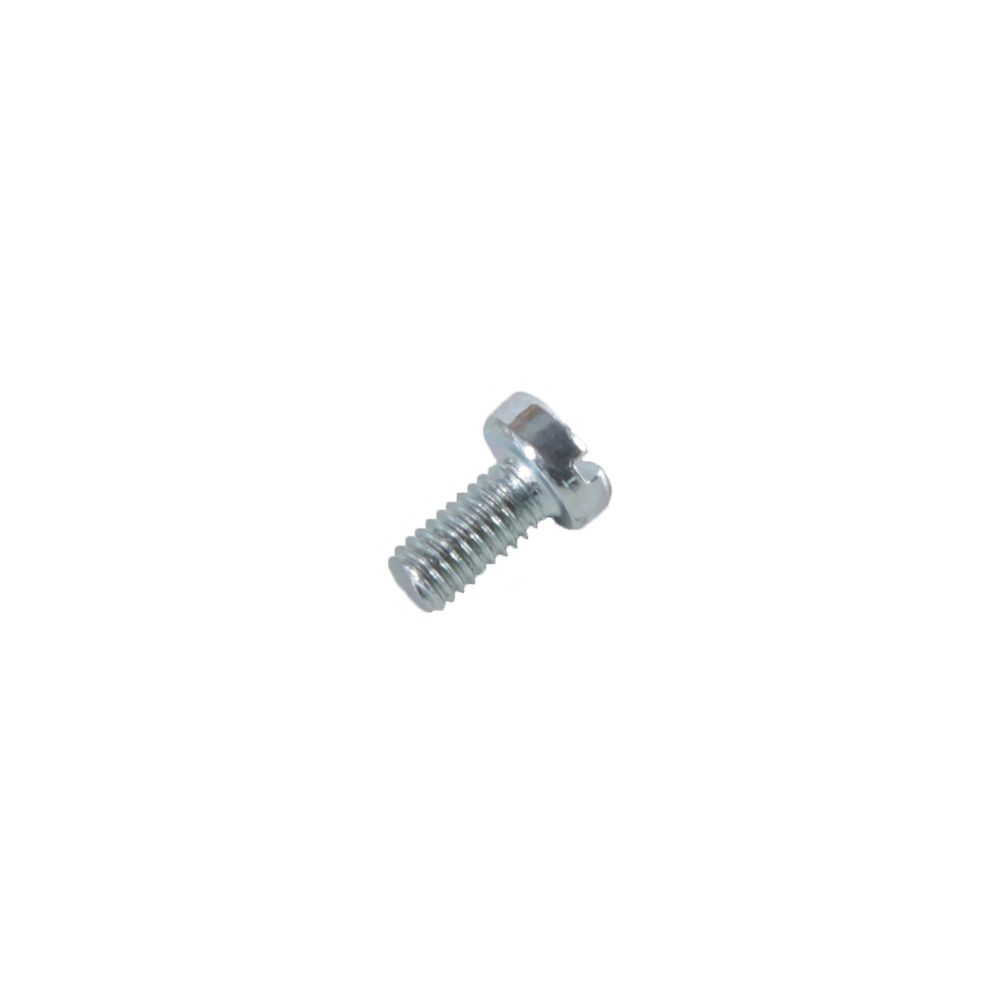

- 51 SRV-HG-701-641 Housing screw M3X6 for Heiniger Handy
- 52 SRV-HG-701-600-30A Air filter for Heiniger Handy
